Introduction

In this article, you learn how detect if your reactive non-blocking Spring app has blocking calls. To achieve this I will use BlockHound

BlockHound is a Java agent that works intercepting the blocking calls from JVM classes BlockHound

Requirements:

Support JDK13+
Use Project Reactor or RxJava2

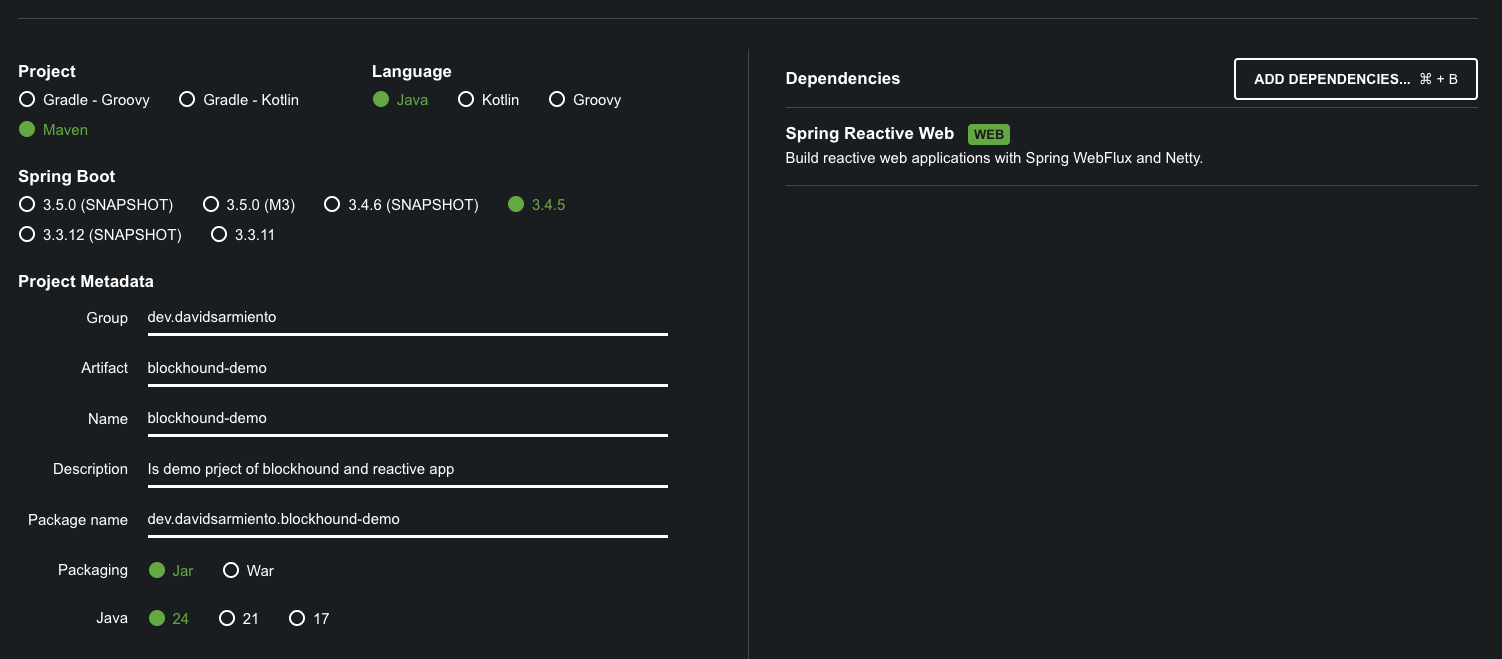

1. Generate the base code:

Go to https://start.spring.io/
Project : Maven
Dependendencies: Webflux

2. Add dependencies:

pom.xml

1<dependency>
2    <groupId>io.projectreactor.tools</groupId>
3    <artifactId>blockhound</artifactId>
4    <version>1.0.11.RELEASE</version>
5</dependency>

pom.xml build section The argument -XX:+AllowRedefinitionToAddDeleteMethods is added to maven-surefire-plugin configuration because it is responsible for test execution. Also, -XX:+AllowRedefinitionToAddDeleteMethods is included in the spring-boot-maven-plugin configuration because it is necessary when packaged application is executed

 1 <build>
 2	<plugins>
 3...
 4		<plugin>
 5			<groupId>org.apache.maven.plugins</groupId>
 6			<artifactId>maven-surefire-plugin</artifactId>
 7			<version>3.1.2</version>
 8			<configuration>
 9				<argLine>-XX:+AllowRedefinitionToAddDeleteMethods</argLine>
10			</configuration>
11		</plugin>
12		<plugin>
13			<groupId>org.springframework.boot</groupId>
14			<artifactId>spring-boot-maven-plugin</artifactId>
15			<configuration>
16				<jvmArguments>-XX:+AllowRedefinitionToAddDeleteMethods</jvmArguments>
17			</configuration>
18		</plugin>
19	</plugins>
20</build>

3. Configuration

BlockhoundDemoApplication.java

1@SpringBootApplication
2public class BlockhoundDemoApplication {
3
4    public static void main(String[] args) {
5       BlockHound.install();  //add to install BlockHound
6       SpringApplication.run(BlockhoundDemoApplication.class, args);
7    }
8
9}

4. Testing BlockHound

For testing BlockHound is working properly, I used a simple blocking and non-blocking code:

 1@RestController
 2public class BlockingController {
 3
 4    @GetMapping("/blocking")
 5    public Mono<String> blockingEndpoint() {
 6        return Mono.just("Starting blocking code...")
 7                .doOnNext(s -> {
 8                    try {
 9                        Thread.sleep(2000);
10                    } catch (InterruptedException e) {
11                        Thread.currentThread().interrupt();
12                    }
13                })
14                .map(s -> s + "Finishing blocking code...");
15    }
16
17    @GetMapping("/non-blocking")
18    public Mono<String> nonBlockingEndpoint() {
19        return Mono.just("Non-blocking code");
20    }
21}

5. JUnit Jupiter and BlockHound

Add this method as static for work with only one BlockHound instance .

1@BeforeAll
2static void setupBlockHound() {
3    BlockHound.install();
4}

6. Results

After call http://localhost:8080/blocking we can see this:

1reactor.blockhound.BlockingOperationError: Blocking call! java.lang.Thread.sleepNanos0
2	at java.base/java.lang.Thread.sleepNanos0(Thread.java) ~[na:na]
3	Suppressed: reactor.core.publisher.FluxOnAssembly$OnAssemblyException:
4Error has been observed at the following site(s):
5	*__checkpoint ⇢ Handler dev.davidsarmiento.blockhounddemo.controller.BlockingController#blockingEndpoint() [DispatcherHandler]
6	*__checkpoint ⇢ HTTP GET "/blocking" [ExceptionHandlingWebHandler]
